The design of the Nanoenvi ® MOTE devices, completely developed by ENVIRA, guarantees the highest levels of safety and reliability and that they can be tailored according to the monitoring needs of each client. They are low-consumption devices that can be powered, if necessary, by small solar panels.
Features

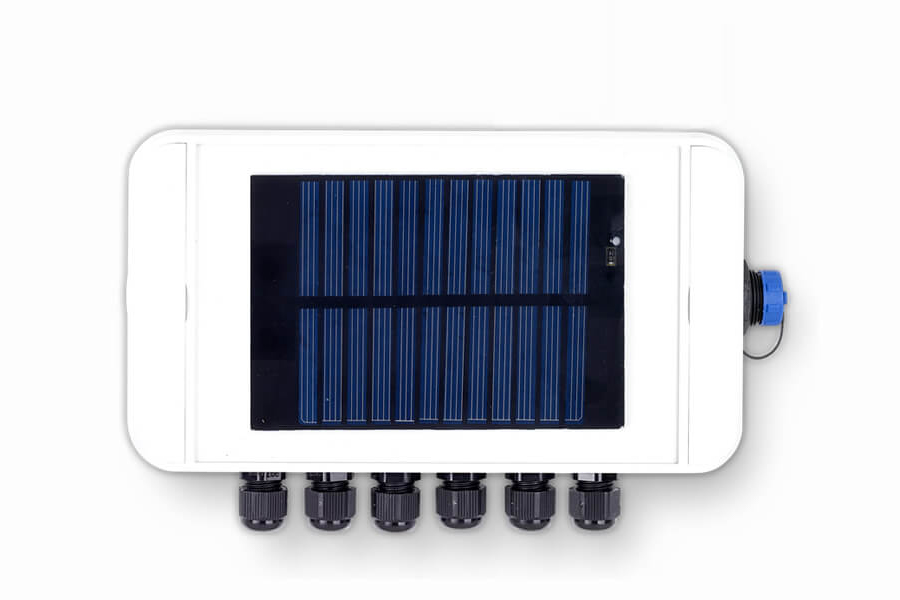

Enclosure/Power
The Nanoenvi motes (remote sensors) are made of ASA Luran, a very light and resistant plastic compound that, together with the thermo-sealing with Elastosyl rubber and silicon, provides them with an IP67 protection level. This ensures their correct performance in the most aggressive surroundings. Due to their resistance, compact design and capacity to perform autonomously (with solar panels), the sensorics can be installed anywhere.

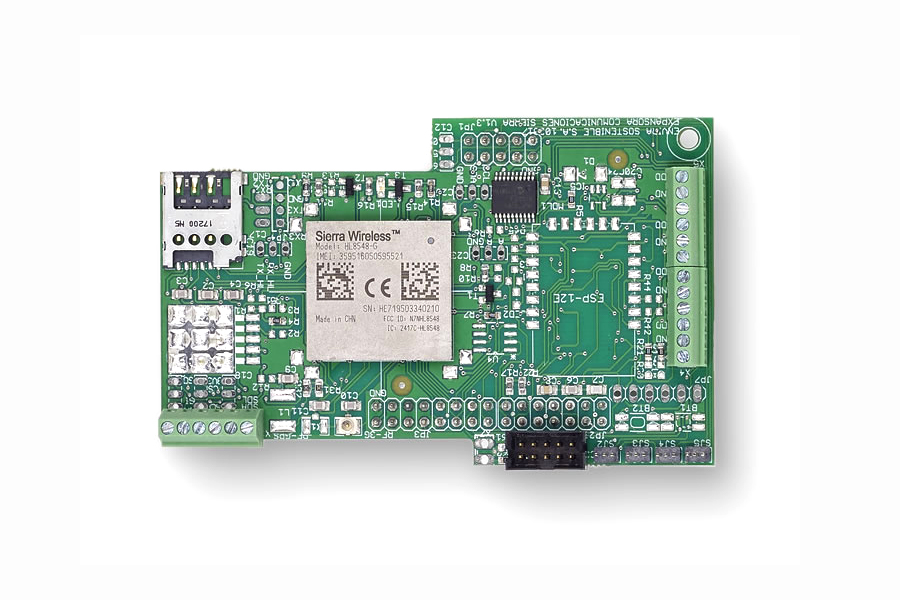

Sensorics/Electronics
The Nanoenvi MOTE equipment can control and monitor several combinations of inlets, both analogical and digital, from sensors or industrial equipment (through the most usual field buses).

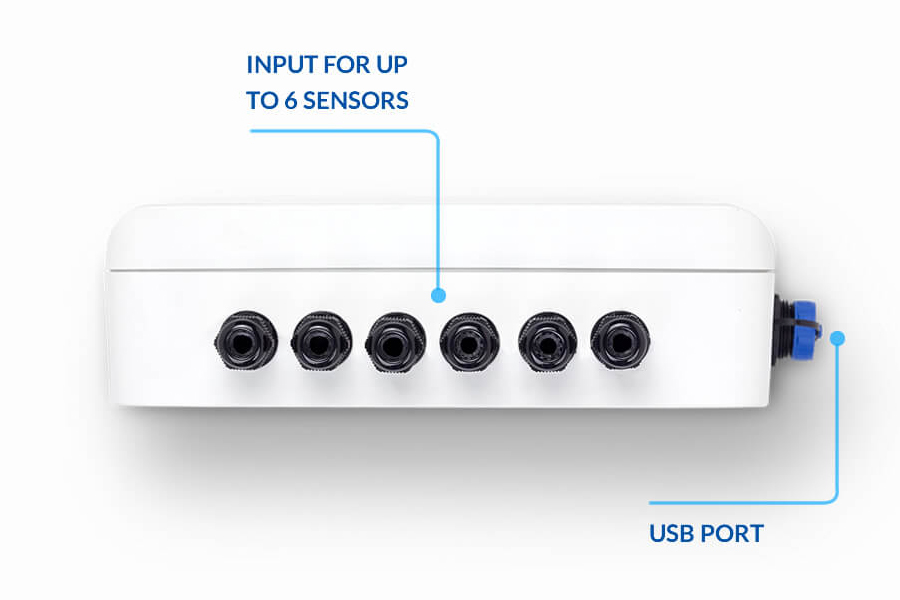

Communications/IoT
The Nanoenvi motes have different connectivity configurations, which ensures their integration in any IoT communication network by means of the usual M2M protocols: WiFi, 3G, Ethernet, 6lowpan, LoRa®, Bluetooth, XBee®/ZigBee®, etc. The Nanoenvi motes are plug’n’play devices and include, in all versions, the standard programming needed to integrate them in the IoT platform chosen by the client -public product or owner- by means of standard protocols such as CoAP, REST or MQTT. In the case of owner platforms or with a specific configuration, the client must provide the connectivity specifications required.

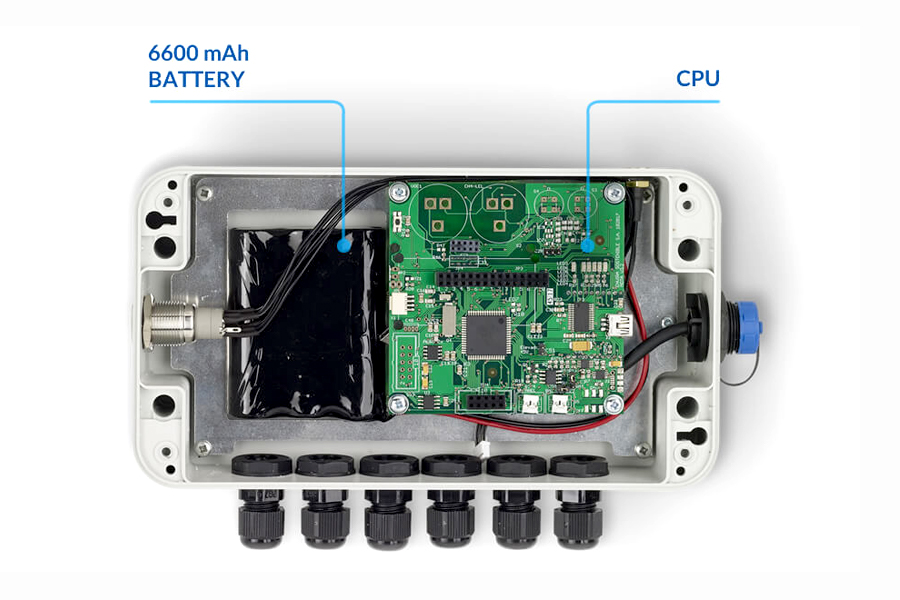

Software/Electronics
Notwithstanding the technical limits imposed by their reduced consumption, the Nanoenvi motes have enough capacity to fulfill the most usual Edge operations: signal additions, filters, smoothings, pre-processing information, threshold assessment (to detect alert events), etc. The internal buffering system and the different sampling and communication policies that can be implemented allow the Nanoenvi motes to keep taking measurements even when connectivity has been cut off.
Product Features
Watering monitors in green areas and golf courses:
As water resources are scarce and there are many regulations for minimizing water consumption, the effective control of watering levels in green areas and golf courses has become very important. Our solution to monitor soil humidity provides managers with valuable information to decide whether watering is necessary or not. The information is wirelessly sent to a local server or to the cloud, so that data can be available for any connected device.
Flood alert system:

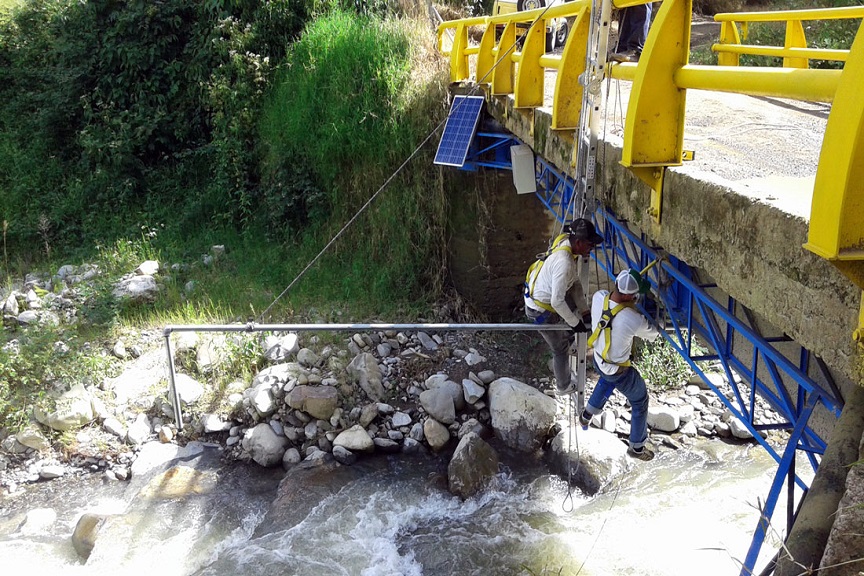

Flood alert systems near rivers, reservoirs or other water courses provide critical information to protect people and properties. Our system of sensors at the level of the water flow uses cutting-edge ultrasonic technology. 3G mobile phone communications and the power from batteries and solar panels make this solution an autonomous and reliable one to detect possible floods and their importance.
Machine connectivity for industry 4.0:
Many machines with old designs lack the possibilities for communication that industry 4.0 technologies provide.The digital transformation offered by Industry 4.0 has allowed manufacturers to create digital twins that are virtual replicas of processes, production lines, factories and supply chains. A digital twin is created by pulling data from IoT sensors, devices, PLCs and other objects connected to the internet.
Monitoring building structural health:

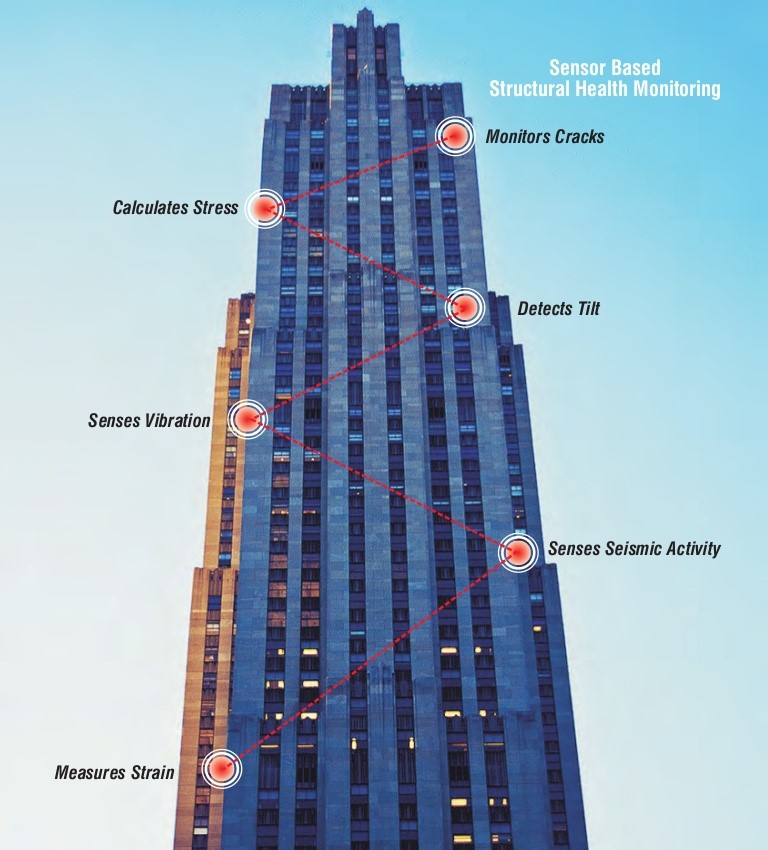

Structural health monitoring (SHM) provides a useful tool for ensuring integrity and safety, detecting the evolution of damage, and estimating performance deterioration of civil infrastructures.Buildings, bridges and other structures are likely to be damaged by natural phenomena, building works nearby, floods or simply by the passing of time or the decay of the materials. Our devices can monitor several parameters of the structure and to prevent damage that entails expensive repairs and risks for people.Structural health monitoring (SHM) system is a method of evaluating and monitoring structural health.
Watering monitors in green areas and golf courses:
Specifications
MICROCONTROLLER
FREQUENCY
SRAM
EEPROM
FLASH
EXTERNAL STORAGE
CLOCK
CONSUMPTION MODES
SOLAR PANEL CHARGE
NUMBER OF SOCKETS FOR SENSORS
ENCLOSURE MATERIAL
SEALING
COVER SCREWS
TYPE OF PROTECTION
RESISTANCE TO IMPACT
ENVIRONMENT TEMPERATURE (MIN.)
ENVIRONMENT TEMPERATURE (MAX.)
APPROXIMATE WEIGHT
XMEGA256
2-32 MHz (it can be set up to optimize consumption)
16 KB
4 KB
16 MB
up to 4GB in SD card
RTC (32 KHz)
15mA (On), 600μA (idle power), 7μA (Power-down), 0.7μA (Power-save)
6 - 12 V - 150mA
6
ASA LURAN
Silicon rubber Elastosil®
Stainless Steel
IP66 EN 60529
According to ISO 2039-1
-10 ° C
50 ° C
350 g
