The Nanoenvi® EQPM system can monitor pollutants, integrating sensors in our platform by means of light scattering. Thanks to Nanoenvi®’s connections to the cloud, users can see the data about air pollution in real time from their computers, mobiles or tablets. This allows them to make quick decisions in unfavourable conditions. They can optionally be combined with other sensors, such as gas or meteorological sensors, providing a complete monitoring solution.
Features

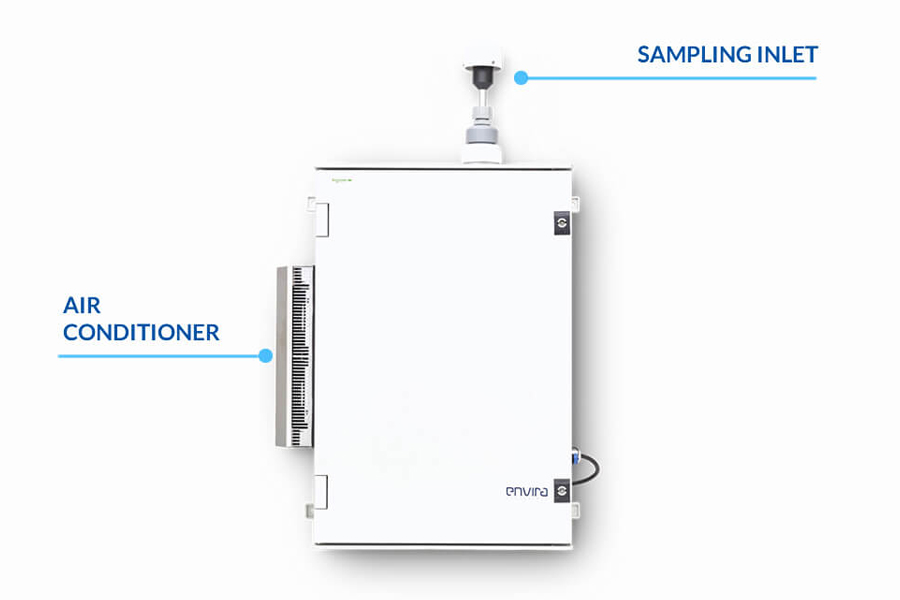

Casing
Made of glass-fiber reinforced polyester, the equipment Nanoenvi EQPM has an IP66 environmental protection level, which ensures totally safe performances outdoors.

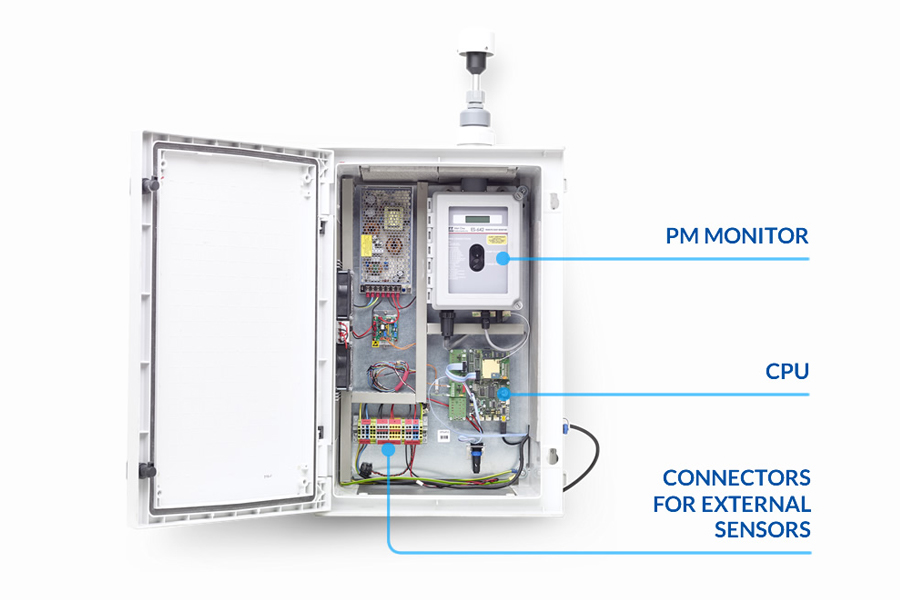

Sensorics
The Nanoenvi EQPM equipment, in collaboration with MetONE, uses electronics for monitoring particles that are based on the technology of light-scattering, thus achieving a high level of precision when measuring concentrations of fractions of particles (PM10, PM2.5, PST).
These sensorics, together with the sample acquisition system owned by Envira IOT, guarantee the stability and reliability of the measurements, no matter the weather conditions outdoors.
IoT
The Nanoenvi EQPM devices for particle monitoring are designed to be integrated within IOT networks by means of M2M standard protocols. They have several settings depending on the communication standard that will be used: 3G, 6lowpan, LoRa®, etc.
All the Nanoenvi devices are integrated with the IoT platform, public or private, chosen by the client or with the platform supplied by Envira IOT for reading and exploiting information.
Specifications
MICROCONTROLLER
FREQUENCY
SRAM
EEPROM
FLASH
EXTERNAL STORAGE
CLOCK
CONSUMPTION
ENCLOSURE MATERIAL
COVER SCREWS
TYPE OF PROTECTION
RESISTANCE TO IMPACT
AMBIENT TEMPERATURE (MIN.)
AMBIENT TEMPERATURE (MAX.)
ENVIRONMENT TEMPERATURE (MAX.)
APPROXIMATE WEIGHT
DIMENSIONS
MAXIMUM NUMBER OF SENSORS
ATMEL SAM4
120 MHz
160 KB
4 KB
4 GB
up to 4GB in SD card
RTC (32 KHz)
200uA/Mhz
Glass-fiber reinforced polyester
Stainless steel
IP66 EN 60529
According to ISO 2039-1
5 ° C
40 ° C
270x170x90
14 KG
430x860x250
16
