The Nanoenvi® AG devices enable the creation of networks of wireless sensors to monitor, predict and optimize the management of agricultural resources in real time, thanks to their connection in the cloud. These networks provide a stricter control of farms, quitar thus controlling diseases, regulating fertilizers and, in general, optimizing resources. Thanks to our device with wireless sensors connected to the cloud, the manager of a farm can have real-time knowledge of its state from a computer, mobile phone or tablet, in order to make immediate decisions and thus increase the productivity of the crops and the profitability of the farm.
Features

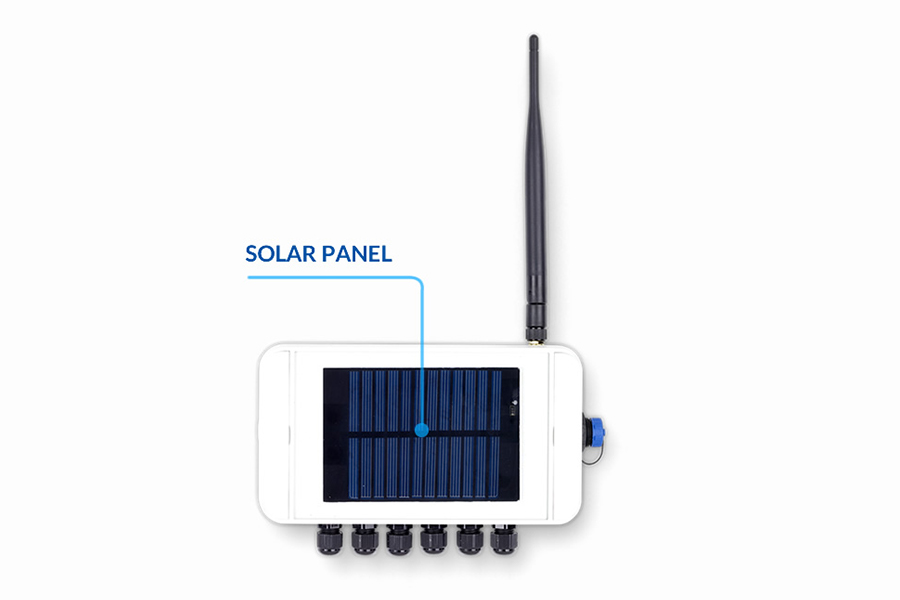

Robust & autonomous
Manufactured with highly-resistant materials: ASA Luran. The Nanoenvi AG device has been created to be installed both outdoors (fields, roads, forests, etc.) and indoors (storehouses, greenhouses, etc.). Thanks to the energy harvesting system (with solar panel) and to their low consumption, the Nanoenvi AG devices can work autonomously for an indefinitely period of time.

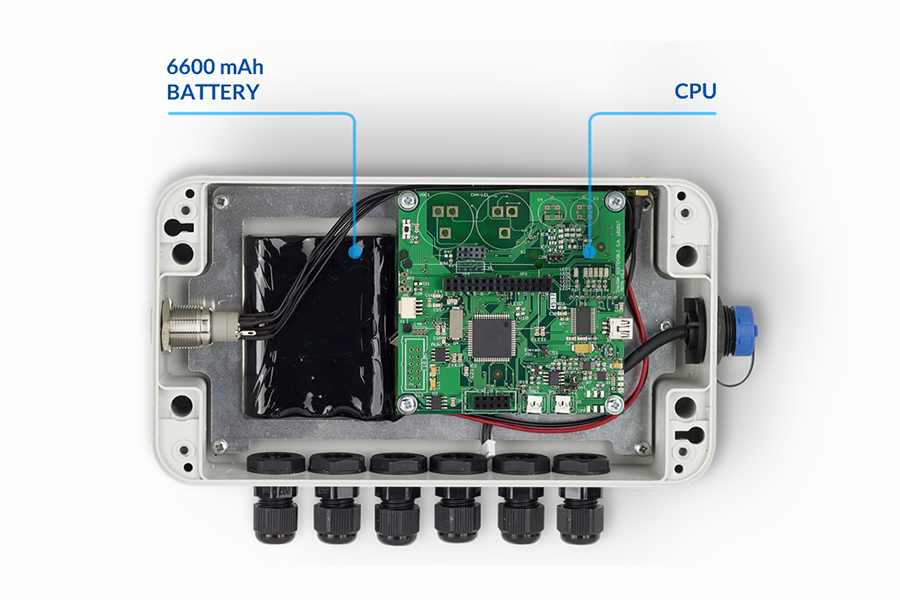

IoT device
The electronics of the Nanoenvi AG device has been completely designed by ENVIRA to adapt to the specific needs of Smart Agro applications, minimizing consumption and providing connectivity to all the specific sensors in the field (meteorological, gas, dendrometer, hygrometer, pH sensors, etc.)
The Nanoenvi AG equipment has the computation capacity required to process the information collected, issue (quitar business) rules to detect events (and notify the user by an alert system) or make algorithms for an initial analysis of the data collected (Edge). All the AG devices are delivered totally integrated in the IoT or Smart Agro platform chosen by the client.
Sensors
The Nanoenvi AG equipment has 6 connectors for sensors, both analogical and digital. Nanoenvi is compatible with several types of sensors: meteorological (temperature, humidity, pressure, rainfall, solar radiation, etc.), gas (H2S, CO, CO2, SO2, etc.) or agricultural (humidity of the leaf, pH of the soil, dendrometers, etc.). Each sensor chosen to be installed in a Nanoenvi AG equipment, notwithstanding its type, is carefully prepared and calibrated at ENVIRA’s certified calibration laboratory, thus ensuring the maximum accuracy, stability and reliability of the measurements.
Specifications
MICROCONTROLLER
FREQUENCY
SRAM
EEPROM
FLASH
EXTERNAL STORAGE
CLOCK
CONSUMPTION MODES
SOLAR PANEL CHARGE
NUMBER OF SOCKETS FOR SENSOR WAVES
ENCLOSURE MATERIAL
SEALING
SCREWS OF THE COVER
TYPE OF PROTECTION
RESISTANCE TO IMPACT
AMBIENT TEMPERATURE (MIN.)
AMBIENT TEMPERATURE (MAX.)
APPROXIMATE WEIGHT
XMEGA256
2-32 MHz (adjustable for consumption optimization)
16 KB
4 KB
16 MB
up to 4GB in SD card
RTC (32 KHz)
15mA (On), 600μA (idle power), 7μA (Power-down), 0.7μA (Power-save)
6 - 12 V - 150mA
6
ASA LURAN
Elastosil® Silicon rubber
Stainless steel
IP66EN 60529
Per ISO 2039-1 .0
-10 ° C
50 ° C
350 g
